Reliance ProTran2 Generator Panel Transfer Switch Model #R30310 B - $250 (Whitmore Lake)
condition:
like new
make / manufacturer:
Reliance
QR Code Link to This Post

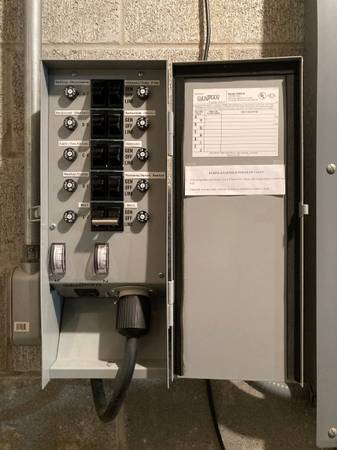

Very nice generator panel in like new condition! Includes generator panel only. Does not include any cords or plugs. For indoor or outdoor use. Very straight forward easy to install.
Call Paul at 734-353- one two six eight
• Safest Way to Distribute Power
• Eliminates dangerous back feeds and electrical overloads
• Versatile Connection
• Allows hardwiring OR plug-in connection via power inlet
• Enclosure has 6 combination 1/2-inch and 3/4-inch knockouts
• Includes wiring harness and 12" conduit for ease of installation
• Built-in Wattage Meter
• Track power input to ensure proper load balancing
• 10 Total Circuits
• Six 1-Pole (120 Volts) and Two 2-Pole (240 Volts)
• UL Listed
• Certified for use by Underwriter Laboratories
Designed for fast outdoor transfer switch installation in residential and commercial applications. Allows the electrical system of a building/house to run off the power of a portable generator so that the electrical devices can be powered during an outage. Simply select the circuits needed in an emergency and connect them using the wire leads provided. Heavy duty, rain tight steel cabinet is powder-coated, with pad lockable cover and will accommodate the generator cord with the cover closed.
• Designed for fast outdoor transfer switch installation in residential and commercial applications
• Allows the electrical system of a building/house to run off the power of a portable generator so that the electrical devices can be powered during an outage
• Simply select the circuits needed in an emergency and connect them using the wire leads provided
• Heavy duty, rain tight steel cabinet is powder-coated, with pad lockable cover and will accommodate the generator cord with the cover closed
• Completely pre-wired with all wires clearly marked for easy identification purposes
• May run up to 10 single pole circuits, or 5 double pole circuits or any combination of a single/double pole circuits totaling 10 circuits, rated at 10 or 20 Amp
• For use with generators up to 7500 running watts
• 2 Reliance watt meters with accuracy of +/- 3% throughout the entire range to monitor and balance generator load
Features
Type
Manual
Amp Rating
30
Circuits
10
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
7500 Watts
Rated Amps
30 Amps
Enclosure
NEMA 3R
Conduit Length
16
Number of Circuit Breakers
10
Max Generator Input
30 Amps
Maximum Wattage
7500 Watts
UL Listed
Yes
Overview
Weight
20 Pounds
Made in USA
Yes
Product Length
18.5 Inches
Product Width
7.5 Inches
Product Height
7 Inches
UPC
815181010232
Transfer Switch Circuits
15A 120V
6
20A 240V
2
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-30R
1
